Jewelry Electroplating





Basic steps of jewelry electroplating and characteristics of different metal electroplating

1. Surface treatment:

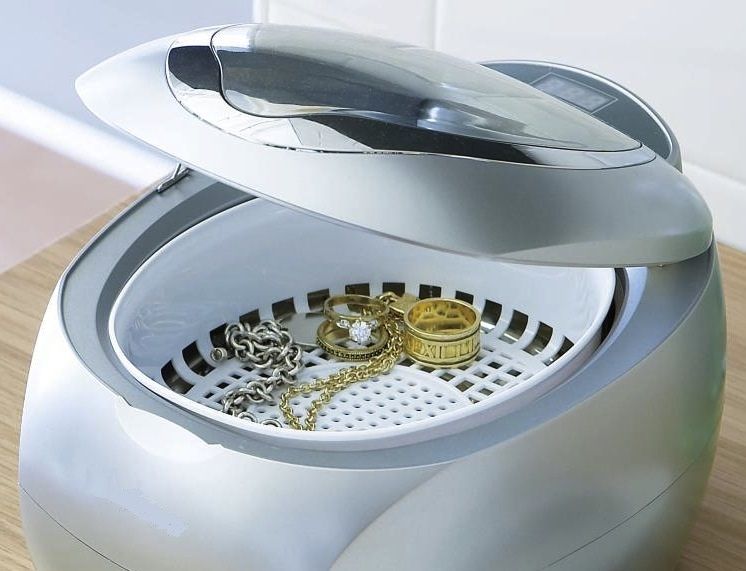

- Cleaning: Before electroplating, the surface of the jewelry must be thoroughly cleaned to remove any grease, dust and oxides. This is usually done by chemical cleaning or ultrasonic cleaning to ensure that the electroplated layer can be evenly attached.
- Grinding and polishing: In order to make the electroplated layer smooth and flat, the jewelry needs to be polished and polished to remove burrs or rough parts on the surface.
Step 1: Pickling, sometimes pickling is used to remove the surface oxide layer and other tiny contaminants.
Step 2: Pre-plating (base coating):





In order to ensure that the electroplated layer is firmly attached, a base metal (such as acid-base red copper/nickel/nickel chloride) is usually plated on the surface of the jewelry first. This not only improves the adhesion of the electroplated layer, but also prevents reactions between different metals, such as preventing gold from diffusing due to direct contact with the base metal, resulting in swelling or blistering.

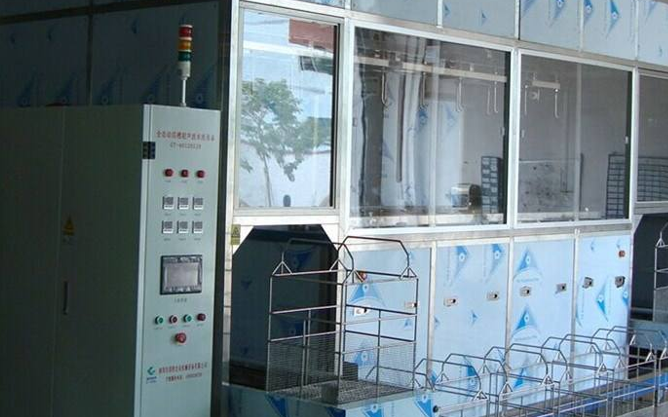

                                                                                     ultrasonic cleaning machine, click to know more





2. Electroplating process:
-Electrolytic tank preparation: Place the cleaned jewelry in the electrolytic tank, which contains a salt solution of the electroplated metal, such as a gold salt solution, a silver salt solution, etc.
-Applying current: Apply current to the electrolytic tank through an external power supply, with the jewelry as the cathode (negative electrode) and the electroplated metal as the anode (positive electrode). The current dissolves the anode metal and deposits it on the cathode (i.e. the surface of the jewelry) to form a uniform metal coating.
Controlling the electroplating time: The length of the electroplating time will affect the thickness of the coating, and is usually adjusted according to demand. A longer time will form a thicker coating.
- Post-treatment:
Rinse: After electroplating, the jewelry needs to be rinsed in pure water to remove residual electrolyte.
Protective treatment: In some cases, a protective coating is added to the electroplated jewelry to prevent wear or oxidation of the coating.

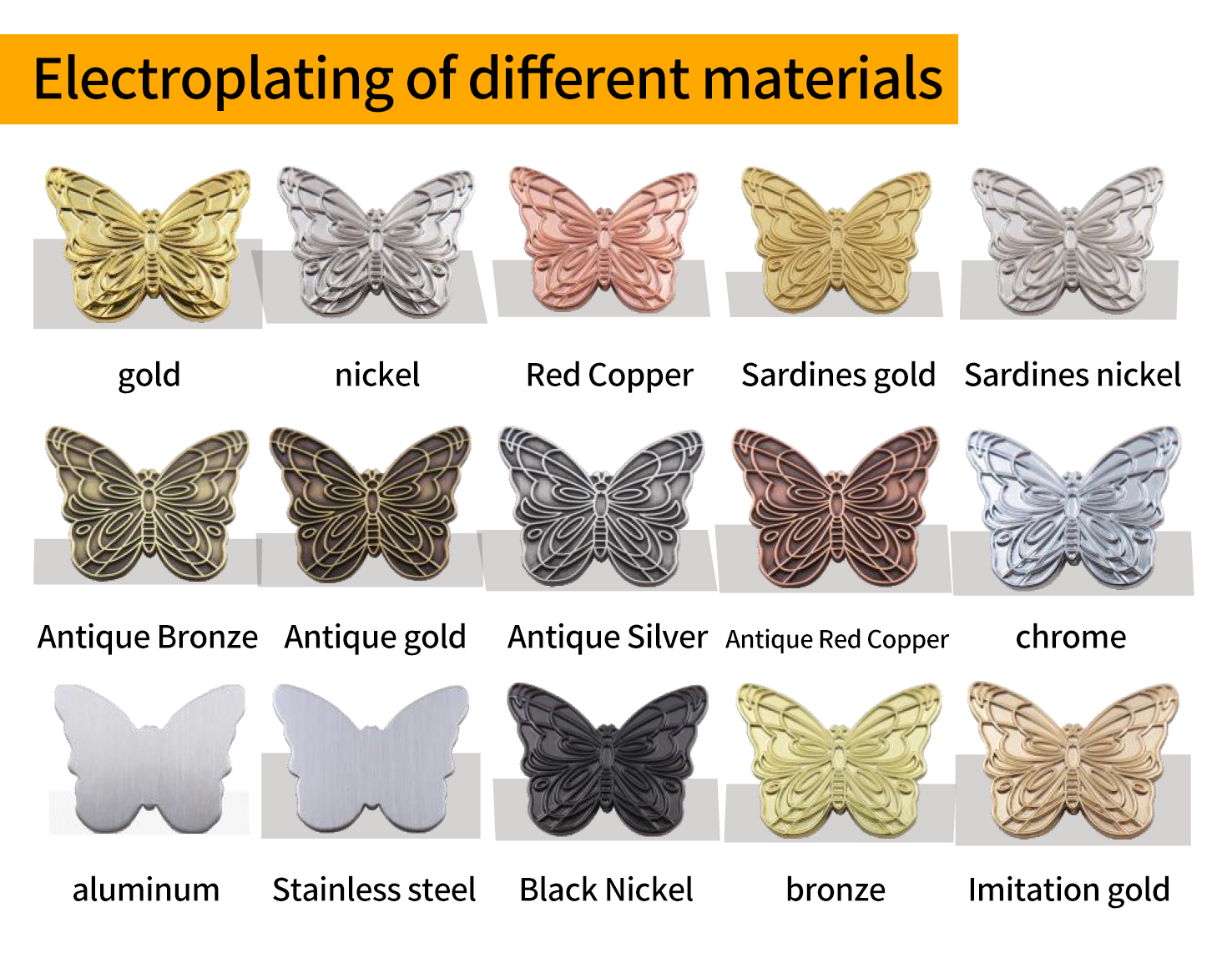

3. The influence of different materials on electroplating methods
The material of the jewelry has a direct impact on the electroplating process and the electroplating method used. The following are several common materials and their impact on the electroplating method:







                                                                                                                              click to know more

-Copper and its alloys (such as brass, bronze):
Electroplating characteristics: Copper and its alloys are more common jewelry substrates with good conductivity and high activity.
Electroplating method: Nickel pre-plating is usually required to avoid direct contact between copper and the plated metal, which may cause diffusion or discoloration.
Challenge: Copper alloys are easily oxidized, and the surface must be thoroughly cleaned and may require pickling to ensure the adhesion of the electroplated layer.


-Silver:
Electroplating characteristics: Silver itself is a precious metal, but because it is easy to oxidize, rhodium is usually plated on the surface to prevent discoloration.
Electroplating method: Silver jewelry can be directly plated with precious metals such as rhodium or gold, or a nickel or copper base layer can be added on the basis of silver.
Challenge: The surface of silver jewelry needs to be handled with special care to avoid oxidation or contamination that affects the quality of electroplating.


-Stainless steel:
Electroplating characteristics: Stainless steel has a high hardness and a smooth surface, and the electroplated layer is not easy to adhere.
Electroplating method: Usually activation treatment (such as pickling or electrolytic polishing) is required to remove the surface oxide layer, followed by copper or nickel plating bottom treatment, and then final electroplating.
Challenge: The surface treatment of stainless steel is relatively complex, and the electroplating process needs to be strictly controlled to ensure uniform adhesion of the coating.


-Zinc alloy:
Electroplating characteristics: Zinc alloy is widely used in low-end and medium-end jewelry, with good casting properties, but it is easy to corrode and easily weathered and broken in a humid environment for a long time.
Electroplating method: Usually copper or nickel bottom plating is performed on the surface of zinc alloy, and then gold, silver or rhodium and other metals are electroplated.
Challenge: Zinc alloy is easily corroded by electrolyte, and special treatment is required before electroplating, and the appropriate electroplating current and time are selected.


-Titanium:
Electroplating characteristics: Titanium has extremely high corrosion resistance and hardness, but it is difficult to electroplate due to the oxide film formed on its surface.
Electroplating method: Usually special surface treatment, such as electrolytic polishing or oxidation treatment, is required before electroplating.
Challenge: Due to the high activity and difficulty of electroplating of titanium, special electroplating processes and equipment are often required.
